INSTALLATION:

PDF - 2017-2021 Honda Civic Type-R High Volume Intake System Install Instructions

Important Notes:

• NO ECU CALIBRATION REQUIRED
• ONLY COMPATIBLE WITH PRL MOTORSPORTS HIGH VOLUME INTAKE SYSTEM
• THE PRL RACE MAF KIT CAN BE INCLUDED FOR FREE WITH THE INLET PIPE PURCHASE

PRL Maf Coupler FK8 For Race MAF To PRL Inlet

Technical Note

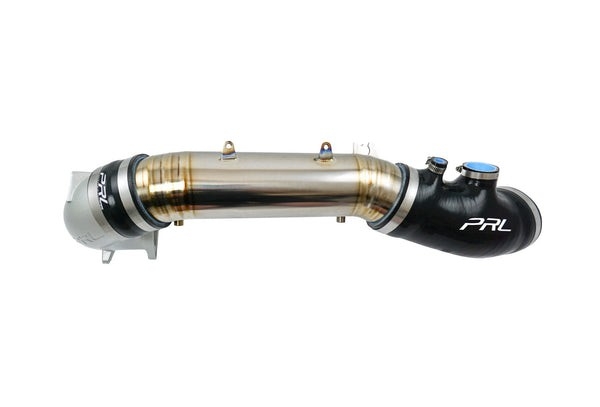

Maximize your FK8's engine intake system and turbocharger potential with the PRL Motorsports Turbocharger Inlet Pipe Kit. This kit is a direct bolt-on upgrade that eliminates intake airflow restriction before the turbocharger, allowing the turbocharger to operate more efficiently. Our design utilizes a cast aluminum inlet piece to allow smooth transition from the gasket-matched 64mm ID compressor inlet to a 80mm OD / 78mm ID outlet throughout the Titanium crossover pipe. This kit is the largest inlet pipe available and offers over a 50% increase in airflow volume in comparison to the factory inlet pipe! Increased bottom-end power and spool.

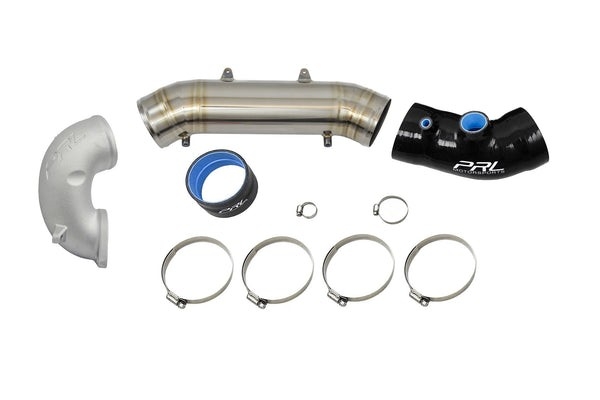

Kit Includes:

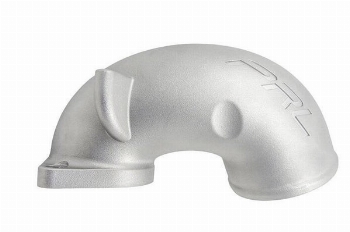

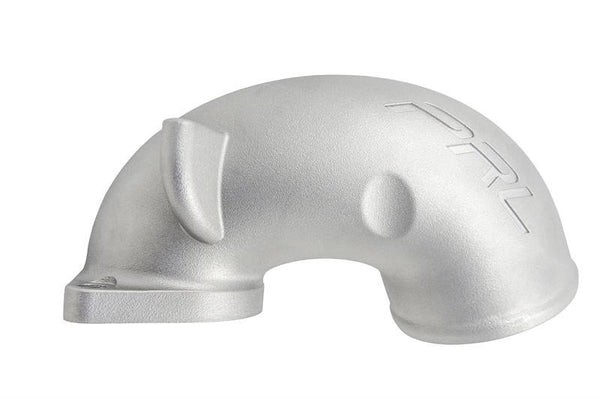

• (1) Cast Aluminum Inlet Piece

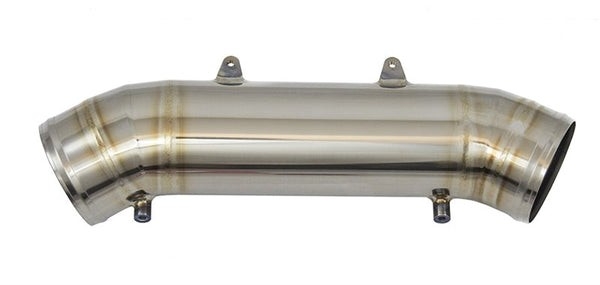

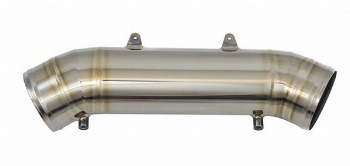

• (1) 80mm OD Titanium Inlet Pipe
• (2) High-Temp 4-Ply Silicone Coupler(s)
• (6) 304 Stainless Steel Interlocking Worm Clamps
• (HVI Customers are to Use the Supplied Injection Molded Evap Purge Fitting with Their HVI)
