Description

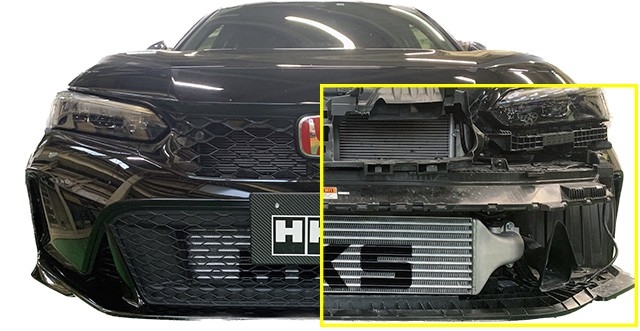

NOTE: Intercooler core only. Does not include piping kit. Reuses OEM piping. To install the intercooler ASSY, it is necessary to modify the air guide inside the bumper and relocate the outside air temperature sensor. No modification of the reinforcement is required.

Features

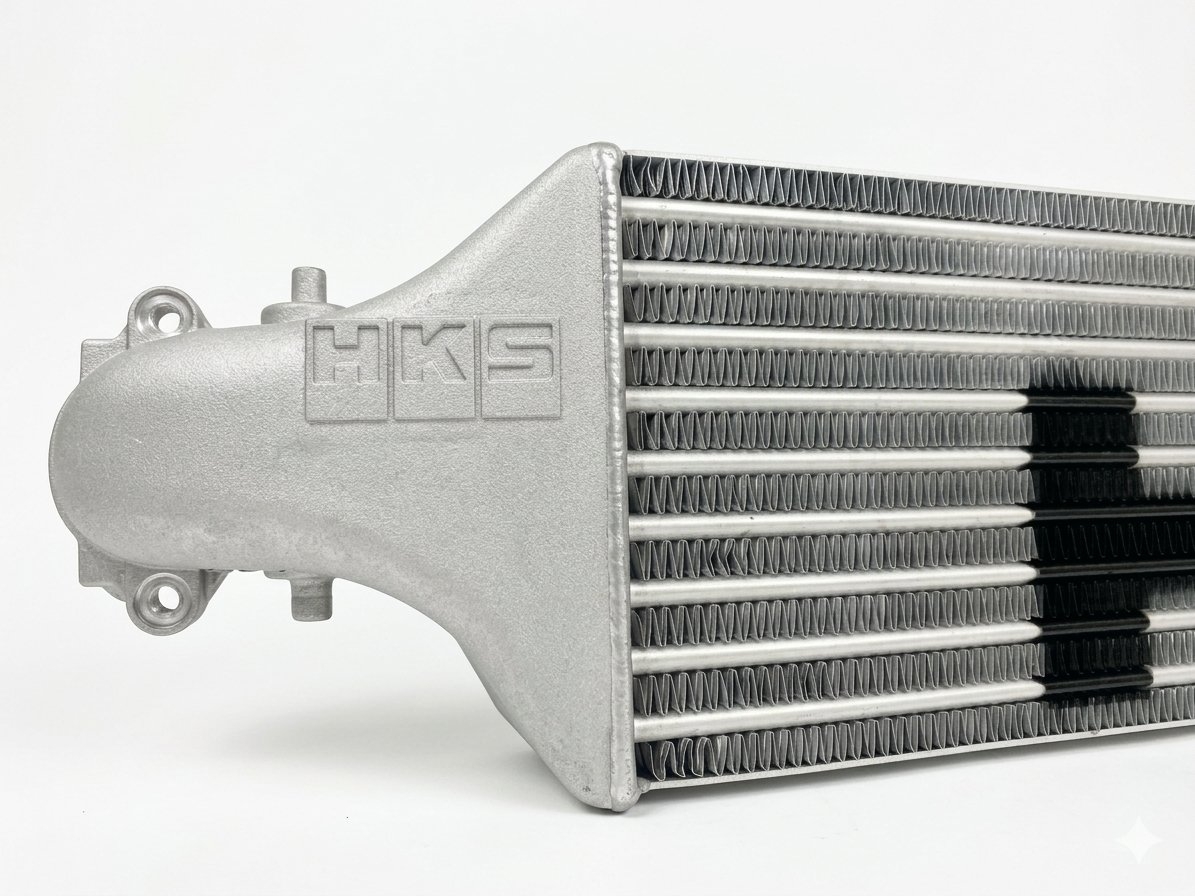

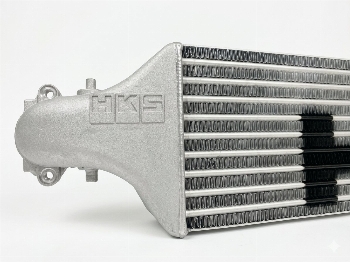

Intercooler Core:
- A huge 22.4% increase in core's area leads to immense improvement in cooling.
- The OEM core does not provide sufficient cooling capacity when boosting up, with increased core capacity it will be compatible with everything from boosting up to turbo upgrade.
- The core is designed to be also installed with OEM piping.

Included:
- Intercooler Core
- Masking Sheet for Logo Spray

Core Size Comparison vs OEM:
- Core Size: 695 x 178 x 100 (OEM 639 x 158 x 64)
- Core Specs: 10 Fins, 9 Tubes (OEM 11 Fins, 10 Tubes)
- Tank: Aluminum Cast (OEM Resin)
- Power: 245 kW (333 PS / 6500 rpm (OEM 243 kW (331 PS / 6420 rpm)
- Torque: 449.5 Nm (45.9 kg/m) / 3260 rpm (OEM 445.8 Nm (45.5 kg/m) / 3360 rpm)
- Cooling Performance: I/C Outlet 30.3 Degrees Celsius (7000 rpm) (OEM I/C Outlet 56.0 Degrees Celsius (7000 rpm)
- Cooling Efficiency: 88% (7000 rpm) (OEM 67% (7000 rpm)
