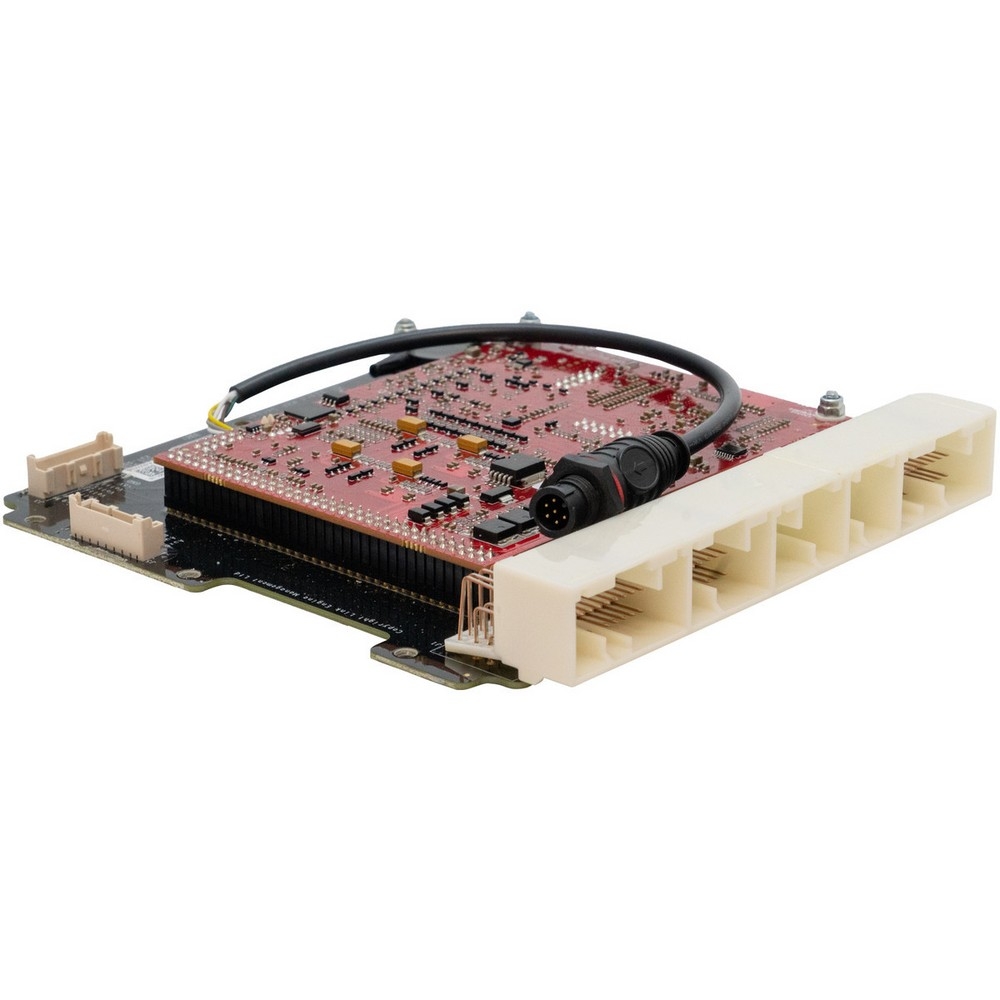

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.

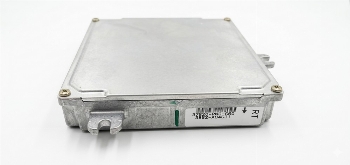

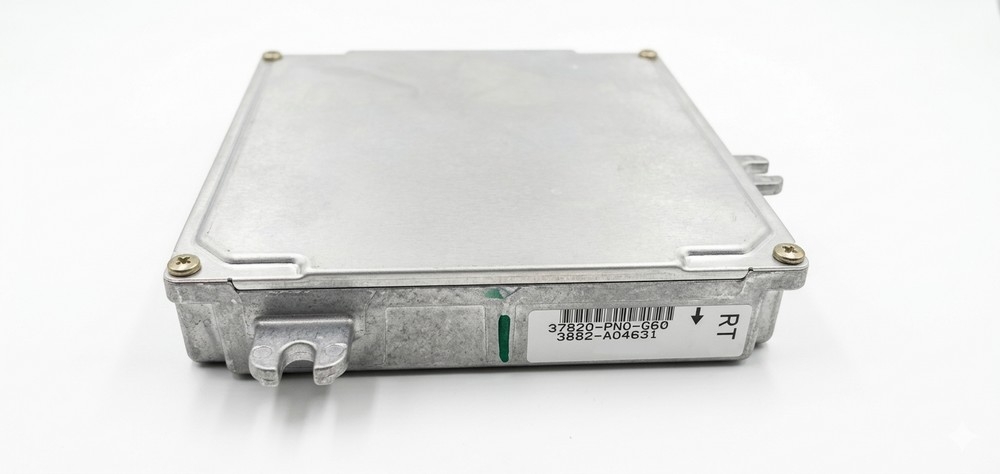

This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

Designed for the K20A engine.

• Please check your connector matches the header in the listed photo before purchasing.
• This ECU works for manual transmissions only.
• ECU includes an onboard 7 bar MAP sensor.
• Most factory features are supported.
• Check the features tab for I/O expansion options

Note: This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection.  Use the CANJST4 (Code 101-0198) cable for connecting CAN devices.  This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices.  The power supply is protected by a self-resetting fuse rated at 3A continuous.

Suitable applications (Manual Transmission only):

Acura RSX 2002-2004 with all K20A/Z & K24A Engine
Honda Integra Type R DC5 2002-2004 with all K20A/Z & K24A Engine
Honda Civic Type R EP3 2001-2005 with all K20A/Z & K24A Engine
Honda Civic Si/SiR 2001-2005 with all K20A/Z & K24A Engine

Honda Civic DX/LX/HX 2001-2005 with D17A1/A2/A3 Engine, all K20A/Z & K24A Engine

Honda CR-V 2002-2004 with all K20A/Z & K24A Engine
